SIZE
-
2350mm diameter - 3400mm diameter
-
10m³ - 57m³ capacity
-
12 tonne - 44 tonne nominal capacity
FEATURES
- Polyethylene silo bin
- Gal steel frame silo
- Suitable for a range of products - fertiliser, grain, feed, seed
- Supa-flow 60 degree cone
- 10 year warranty and 20+ year lifespan
- See below for additional features

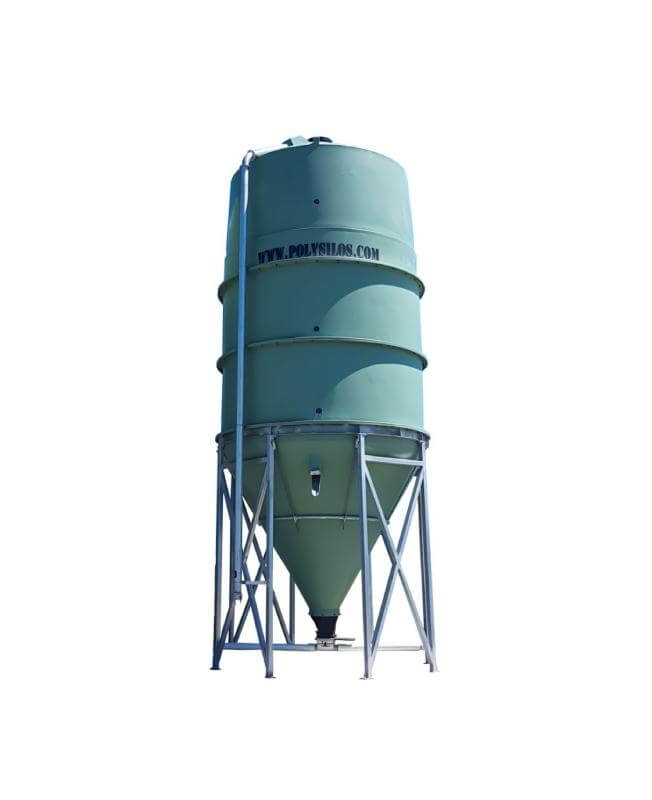

Pellet Silo
Details
Part No. | Cubic Capacity (m³) | Nominal Tonnage (Pellets 780kg/m³) | Diameter (mm) | Overall Height (mm) | Outlet Height (mm) | Product Details | |
---|---|---|---|---|---|---|---|
PS60-10 | 10 m³ | 12 tonne | 2350 mm | 5500 mm | View Product Details |
|
|
PS60-16 | 16 m³ | 12 tonne | 2900 mm | 5500 mm | 1000 mm | View Product Details |
|
PS60-27 | 27 m³ | 21 tonne | 3400 mm | 6250 mm | 800 mm | View Product Details |
|
PS60-37 | 37 m³ | 29 tonne | 3400 mm | 7450 mm | 800 mm | View Product Details |
|
PS60-47 | 47 m³ | 37 tonne | 3400 mm | 8650 mm | 800 mm | View Product Details |
|
PS60-57 | 57 m³ | 44 tonne | 3400 mm | 9850 mm | 800 mm | View Product Details |
|
PS60-10 | |
---|---|
Cubic Capacity (m³) | 10 m³ |
Nominal Tonnage (Pellets 780kg/m³) | 12 tonne |
Diameter (mm) | 2350 mm |
Overall Height (mm) | 5500 mm |
Outlet Height (mm) | |
Product Details | View Product Details |
Add to Cart |
|
PS60-16 | |
Cubic Capacity (m³) | 16 m³ |
Nominal Tonnage (Pellets 780kg/m³) | 12 tonne |
Diameter (mm) | 2900 mm |
Overall Height (mm) | 5500 mm |
Outlet Height (mm) | 1000 mm |
Product Details | View Product Details |
Add to Cart |
|
PS60-27 | |
Cubic Capacity (m³) | 27 m³ |
Nominal Tonnage (Pellets 780kg/m³) | 21 tonne |
Diameter (mm) | 3400 mm |
Overall Height (mm) | 6250 mm |
Outlet Height (mm) | 800 mm |
Product Details | View Product Details |
Add to Cart |
|
PS60-37 | |
Cubic Capacity (m³) | 37 m³ |
Nominal Tonnage (Pellets 780kg/m³) | 29 tonne |
Diameter (mm) | 3400 mm |
Overall Height (mm) | 7450 mm |
Outlet Height (mm) | 800 mm |
Product Details | View Product Details |
Add to Cart |
|
PS60-47 | |
Cubic Capacity (m³) | 47 m³ |
Nominal Tonnage (Pellets 780kg/m³) | 37 tonne |
Diameter (mm) | 3400 mm |
Overall Height (mm) | 8650 mm |
Outlet Height (mm) | 800 mm |
Product Details | View Product Details |
Add to Cart |
|
PS60-57 | |
Cubic Capacity (m³) | 57 m³ |
Nominal Tonnage (Pellets 780kg/m³) | 44 tonne |
Diameter (mm) | 3400 mm |
Overall Height (mm) | 9850 mm |
Outlet Height (mm) | 800 mm |
Product Details | View Product Details |
Add to Cart |
|
Features
For Pellet Silo 60 Degree Cone Bottom Silo Contact our friendly staff today 1800 502 267.
- Impervious polyethylene silo bin
- UV stabilised
- Food grade
- No rust
- Gal steel frame
- Fully weather sealed
- Cooler storage temperatures, sweating minimised
- 800mm clearance
- Easy access
- Suitable for a range of products
– fertiliser, grain, feed, seed - Supa-flow 60 degree cone
- Reverse angle top cone
- Manhole in base cone
- Polycarbonate sight glasses
- Auger boot adaptable
- Bag chute option
- Blow tube delivery option
- 10 year warranty and 20+ year lifespan
From design of the farm and building of the sheds, silos and feed systems to feeding and processing the stock, intensive farming practices have the need for quality engineered products that are purpose built to deliver superior serviceability and fit the requirements of modern farms that are planning for now and the future. Enmach poly silos offer an unbeatable 10 Year Warranty and 20+ Year life span giving you the best return on assets of any poultry silo in the Australian market. Cutting edge dry goods storage for feed mash and pellets providing extremely high discharge flow rates. Polyethylene silos are self-insulating meaning the stored feed will be cooler and sweating issues are greatly reduced.
High flow 60 degree cone meaning flow issues and holdups in silos are now a memory of the past. Polyethylene silo construction which is fully UV stabilised, impervious to everything, with a fully compounded colour that won’t fade, scratch or corrode. The Enmach pellet silo has a uniquely designed reverse angle top cone section which facilitates feed flow. Open access frame which provides super-easy access to the outlet and to the auger attachment. Innovative modular system which is easily transported and assembled. A two man team can assemble a 47m³ silo in under 8 hours. Stainless steel knife gate and fully galvanised. Australian made. All gal steel frame meaning your silos will remain corrosion free. Options available include a 100mm blow tube delivery pipe and air vent, a cone outlet chute and feed system adaptable. Patent Pending.
